Using the CGT-501 for Home Inspections




  Handheld Gas Detectors for
Combustible & Toxic Gases


CGT-501 Available for all combustible and many toxic gases.
(See below for a complete list) Available in rechargeable (NK) and non-rechargeable (AK) versions. Packed in handy carrying case.
CGT-701 Rechargeable detector for nitrogen dioxide, ozone, chlorine, fluorine, bromine and other halogen gases.

  • Sensitive - well below OSHA limits and lower explosive limits. In many cases will detect gas leaks as low as one part per million.
  • Adjustable sensitivity.
  • Low Maintenance - Easy to Use
  • Sensor cannot be poisoned or flooded
  • Fast response time
  • Dependable, Rugged, Tough
  • Affordable
  • Audible Alarm which can be turned on and off
  • Meter to help you zero in on a leak and gives you an indication of the size of the leak
  • Easy to carry, lightweight belt clip

CGT Accessories
501CX
Three Foot Coiled Extension
501RX
Retractable Telescoping Extension

501RA
Chart Recorder jack & adapter cord

501 DH
Custom Extension (priced per foot)

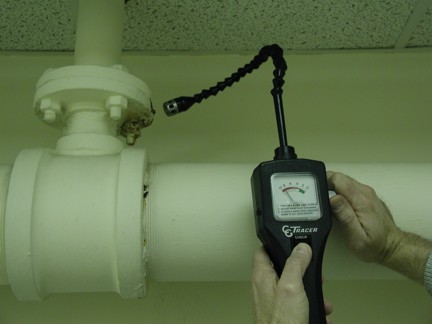

501GX
Gooseneck Extension

CGT-501 Detectable Gases & Vapors
The sensor is designed for over 50,000 exposures. It detects 2-10 ppm of many combustible and toxic gases. See Combustible Hydrocarbon page.


Acetaldehyde
Acetone
Acetonitrile
Acetylene Tetrabromide
Alcohol
Allyl Alcohol
Ammonia
Benzene
Benzoyl Chloride
Benzoyl Peroxide
Butane
Butanone (MEK)
Butoxyethanol
Butyl Alcohol
Butyl Acetate
c-Allylglycidylether
c-Chloroform
c-Dichloroethyl Ether
Camphor
Carbon Monoxide
Carbon Tetrachloride
Chloro-1-Nitropropane
Chloroacetaldehyde
Chlorobenzene
Chloropicrin
Chloroprene
cl,1-Dichloro-1-Nitroethane Cumene
Cyclohexane
Cyclohexanol
Cyclohexanone
Cyclopentadiene
DDT
Diacetone Alcohol
Diasomethane
Diborane
1,1 Dichloroethane
1,2 Dichloroethane
Diethylamine
Diethylamino Ethanol
Dimethylamine
Dimethylaniline
Dimethylformamide
Dimethylhydrazine
Dinitrobenzene
Dinitroluene
Dipropylene Glycol Methyl Ether
Disobutyl Ketone
Epichlorhydrin
Ether
Ethoxyethanol
Ethyl Butyl Ketone
Ethyl Ether
Ethyl Bromide
Ethyl Formate
Ethyl Benzene
Ethyl Alcohol
Ethyl Chloride
Ethylamine
Ethylene Dichloride
Ethylene Oxide
Ethylenediamine
Formaledehyde
Furfuryl Alcohol
Gasoline
Glycol Monoethyl Ether
Heptane
Hexachloroethane
Hexane
Hexanone
Hydrogen Sulfide
Hydrogen Chloride
Hydrogen Bromide
Hydrogen
Isoamyl Alcohol
Isobutyl Alcohol
Isopropyl Alcohol
Isopropyl Glycidel Ether
Ketone
L.P. Gas
Lacquer Thinners
Methane
Methyl Acetylene
Methyl Cellosolve
Methyl Isobutyl Ketone(Hexone)
Methyl Butyl Ketone
Methyl Mercaptan
Methyl Chloroform
Methyl Alcohol
Methyl Chloride
Methyl n-Amyl Ketone
Methyl Ethyl Ketone
Methylal
Methylamine
Methylchclohexanol
Methylcyclohexane
Methylene Chloride
Naphtha
Napthalene
Natural Gas
Nitrobnzene
Nitrochlorobenzene
Nitroethane
Nitroglycerin
Nitromethane
Nitrotoluene
Pentane
Pentanone
Perchloroethylene
Petroleum Distillates
Phenylether
Propane
Propargyl Alcohol
Propylene Oxide
Propyne
Refrigerant R-502(Freon 502)
Refrigerant R-123(Freon 123)
Refrigerant R-22 (Freon 22)
Refrigerant R-11 (Freon 11)
Sulfur Dioxide
Tetrachloronaphthalene
Tetranitromethane
Toluene
1,1,1 Trichloroethane
1,1,2 Trichloroethane
Trichloroethylene
Trichloronaphthalene
Trichloropropane
Trinitrotoluene
Turpentine
Xylene

TIP: The information given at Using the CGT-501 for Home Inspections is useful for ANYONE using the instrument.
